DMF-Y-76S 3″ Φ202 Diaphrgam tank mounted Pulse Jet Valves DC24

Short Description:

DMF-Y-76S 3" Φ202 Diaphrgam tank mounted Pulse Jet Valves DC24 1. Tank mounted diaphragm valve system with special springless piston/diaphragm design offers highest peak pressure and best flow performance operating features required for dust collector applications. 2. The high quality diaphragm guarantees a long operating life and a large temperature range. 3. Possible to apply different combinations of pitch distances and up to 24 valves.. 4. Each to connect to other tank systems. Service...


  • FOB Price: US $5 - 10 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: NINGBO / SHANGHAI
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    DMF-Y-76S 3" Φ202 Diaphrgam tank mounted Pulse Jet Valves DC24

    1. Tank mounted diaphragm valve system with special springless piston/diaphragm design offers highest peak pressure and best flow performance operating features required for dust collector applications.
    2. The high quality diaphragm guarantees a long operating life and a large temperature range.
    3. Possible to apply different combinations of pitch distances and up to 24 valves..
    4. Each to connect to other tank systems. Service connections for different accessories such as: filter regulator, pressure gauge, safety and automatic/manual drain valve.
    5. Several blow pipe connections available, such as: quick mount, push-in, hose or threaded connection.

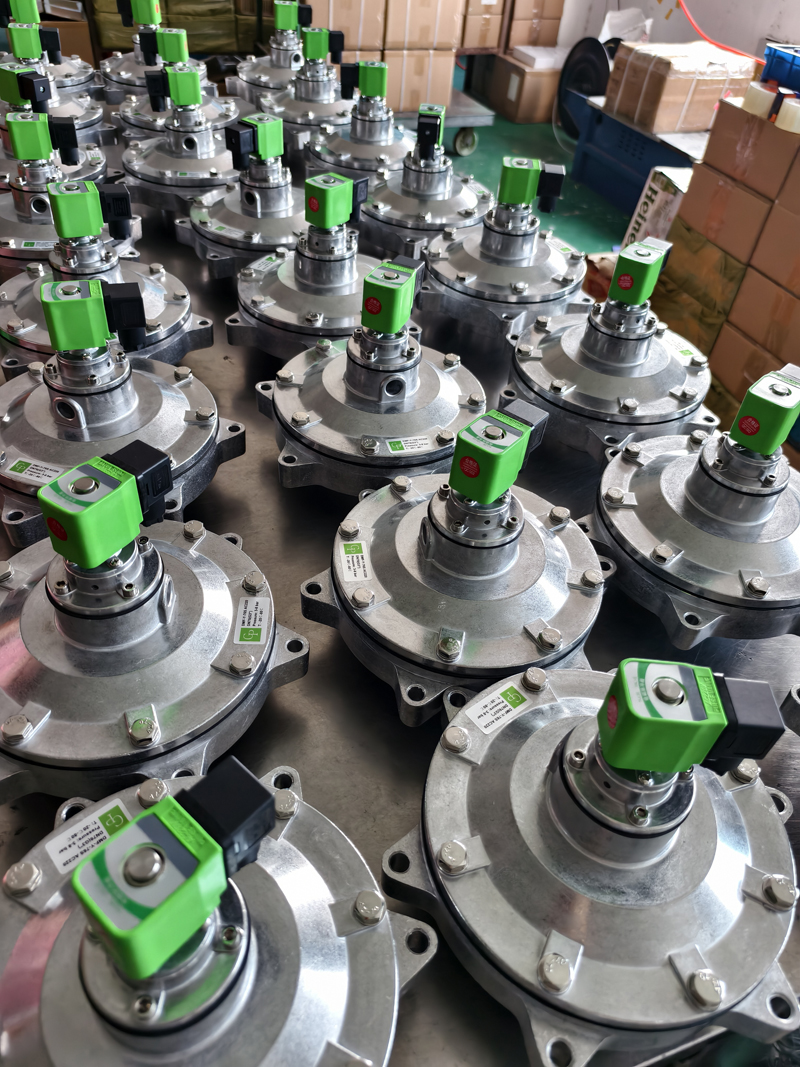

    IMG_5457

    Main Features

    Model Number: DMF-Y-76S DC24 / AC220V
    Structure: Diaphragm
    Power: Pneuamtic
    Media: Gas
    Body Material: Alloy
    Port Size: 3 Inch
    Pressure: Low Pressure
    Temperature of Media:Medium Temperature

    98

    Type Orifice Port Size Diaphragm KV/CV
    DMF-Y-25 25 1" 1 26.24/30.62
    DMF-Y-40S 40 1 1/2" 2 39.41/45.99
    DMF-Y-50S 50 2" 2 62.09/72.46
    DMF-Y-62S 62 2.5" 2 106.58/124.38
    DMF-Y-76S 76 3" 2 165.84/193.54



    DMF-Y-76S DC24V pulse jet valve diaphragm kits / membrane

    IMG_5293

    Good quality imported diaphragm shall be selected and used for all the valves, with each part checked in each manufacturing procedure, and put into the assembly line conforming to all the procedures. Ever finished valve shall be taken blowing test.
    Diaphragm repair kits suit for DMF series dust collector diaphragm valve
    Temperature Range: -40 – 120C ( Nitrile material diaphragm and seal), -29 – 232C (Viton material diaphragm and seal)

    Timers for DMF-Y-76S 3" tank mounted pulse jet valves AC220/DC24

    IMG_5483



    We promise and our advantages:

    1. Quick action based on our customers needs and requests. We will arrange deliver immediately
    after payment received when we have storage.We arrange manufacturing in first time if we don't have enough storage.
    2. Our customers enjoy comprehensive professional technical support for pulse valve and pneumatic systerm.
    3. We accept customer made pulse valve, diaphragm kits and other valve parts based on our customers' requests.
    4. Files for clear will prepare and send to you after goods been delivered, make sure our customers can clear in customs
    and working the business smoothly. FORM E, CO supply for you based on your needs.
    5. Professional after sale service improve and push our customers' working during their business term after you choose to work with us.
    6. Effective and hostage service make you feel comfortable to work with us. Just like your friends.

    Loading time: 7-10 days after payment received
    Warranty: Our pulse valve warranty is 1.5 year, all valves comes with basic 1.5 year sellers warranty, if item defective in 1.5 year, We will offer replacement without extra charger(including shipping fee) after we receive the defective products.

    Deliver
    1. We will arrange deliver immediately after payment when we have storage.
    2. We will prepare the goods after confirmed in the contract on time, and deliver ASAP follow the contract exactly when the goods are customized
    3. We have a variety of ways to send goods, such as by sea, by air, express as DHL, Fedex, TNT and so on. We also accept deliver arranged by customers.
