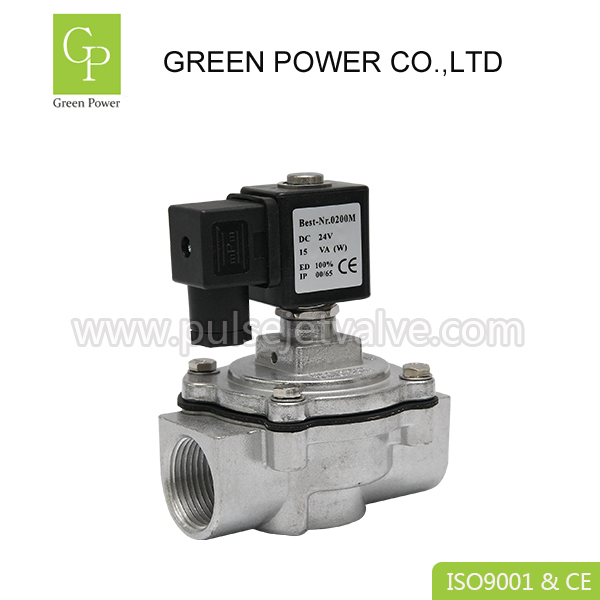

DC24V 1" straight type pulse valve
Model: SCG353A044JT
Structure: Diaphragm
Working-pressure: 0.3--0.8MPa
Ambient Temperature: -5 ~55
Relative Humidity: < 85 %
Working Medium: Clean Air
Voltage: AC220V DC24V
Diaphragm Life: One Million cycles
Port Size: 1"
The straight through pulse valve is a type of pulse valve used in pulse injection dust collectors. Inlet port and outlet port is 180 degree. It is used to control the flow of compressed air jet to punch the filter bags, cleaning them by releasing short bursts of air called pulses. This helps remove accumulated dust and maintains the efficiency of the filtration system. This kind valves are designed to be installed in a straight configuration for efficient dust collection and cleaning.
Construction
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or Viton (reinforced)
Spring: 304 SS
Screws: 302 SS
Diaphragm Material: NBR / Viton
Installation
1. Prepare supply and blow tube pipes to suit valve specification. Avoid installing pulse valves underneath the tank.
2. Ensure tank and pipes avoid dirt, rust or other particulate.
3. Make sure air source is clean and dry.
4, When mount valves to inlet pipes and outlet to the baghouse, ensuring no excess thread
sealant can enter the valve itself. Keep clear in the valve and pipe.
5. Make electrical connections from solenoid to the controller or connect RCA pilot port to pilot valve
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.

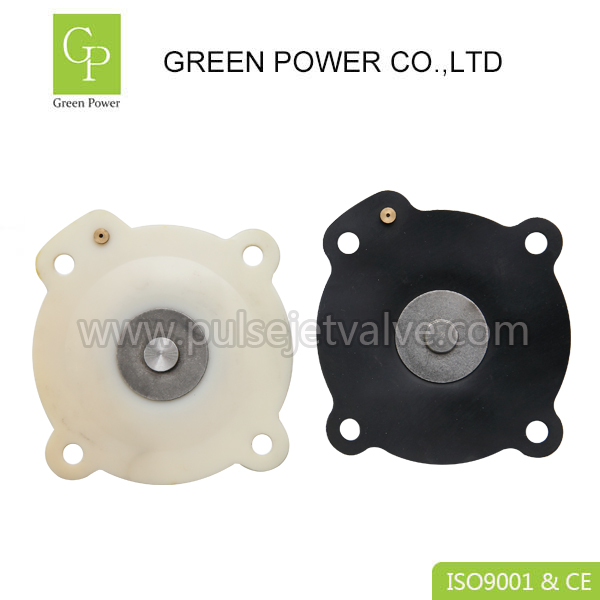

1" ASCO pulse valves TPE/NBR diaphragm kits
Good quality imported diaphragm shall be selected and used for all the valves, with each part checked in each manufacturing procedure, and put into the assembly line conforming to all the procedures. Ever finished valve shall be taken blowing test.
Diaphragm repair kits suit for DMF series dust collector diaphragm valve.
Temperature Range: -40 – 120C ( Nitrile material diaphragm and seal), -29 – 232C (Viton material diaphragm and seal)
Loading time: 7-10 days after payment received
Warranty: Our pulse valve warranty is 1.5 year, all valves comes with basic 1.5 year sellers warranty, if item defective in 1.5 year, We will offer replacement without extra charger(including shipping fee) after we receive the defective products.

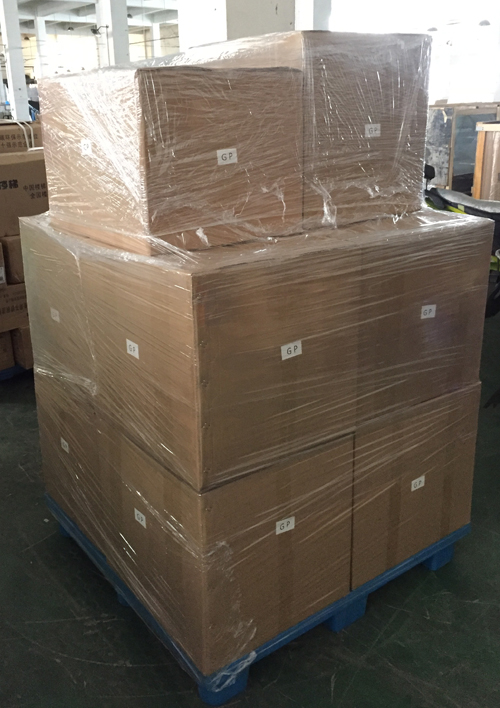

Deliver
1. We will arrange deliver immediately when we have storage.
2. We will prepare the goods after confirmed in the contract on time, and deliver ASAP follow the contract exactly when the goods are customized
3. We have a variety of ways to send goods, such as by sea, by air, express as DHL, Fedex, TNT and so on. We also accept deliver arranged by customers.
We promise and our advantages:
1. We are a factory professional for pulse valve and diaphragm kits manufacturing.
2. Long service life. Warranty: All pulse valve from our factory make sure 1.5 years service life,
all valves and diaphragm kits with basic 1.5 year warranty, if item defective in 1.5 year, We will
supply replacement without extra payment(including shipping fee) after we receive the defective products.
3. We manufacturing and supply different series and different size pulse valve and diaphragm kits for option
4. We accept customer made pulse valve, diaphragm kits and other valve parts based on our customers' requests.
5. We also supply imported diaphragm kits for option when customers have highest quality requests.
Effective and hostage service make you feel comfortable to work with us. Just like your friends.
