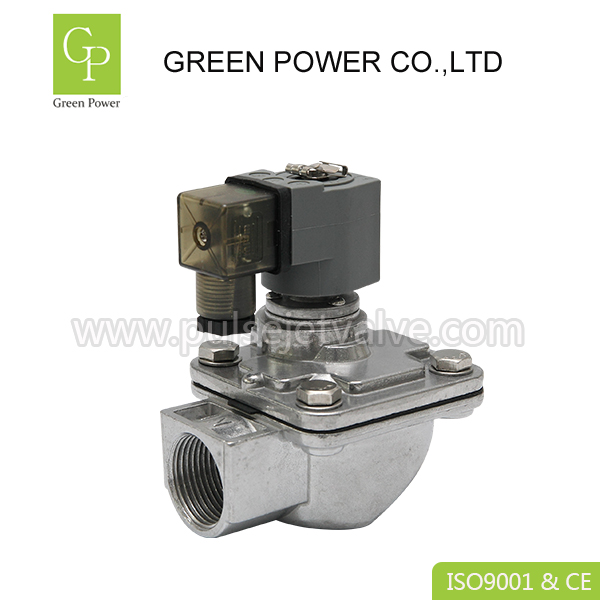

CA-25T integral pilot 1″ diaphragm valve

Baghouse pulse jet clean systerm of CA series diaphragm valve
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90 degree to inlet.
Suitable for dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters,cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

CA-25T integral pilot 1" diaphragm valve DC24V / AC220V

Model: CA-25T and RCA-25T threaded valves
Structure: Diaphragm
Working-pressure: 0.3--0.8MPa
Working Medium: Clean Air
Port Size: 1"

Construction
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or Viton (reinforced)
Spring: 304 SS
Screws: 302 SS
Diaphragm Material: NBR / Viton
Installation
1. Prepare supply and blow tube pipes to suit valve specification. Avoid installing
valves underneath the tank. Avoid installing valves underneath the tank
2. Ensure tank and pipes avoid dirt, rust or other particulate.
3. Make sure air source is clean and dry.
4, When mount valves to inlet pipes and outlet to the baghouse, ensuring no excess thread
sealant can enter the valve itself. Keep clear in the valve and pipe. This is so important to the working of the valve.
5. Make electrical connections from solenoid to the controller or connect RCA pilot port to pilot valve
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.

CA-25T, RCA-25T 1" diaphragm valve diaphragm repair kits(First class quality diaphragm with imported rubber)

Diaphragm repair kits inspection should be conducted annually.

Good quality imported diaphragm shall be selected and used for all the valves, with each part checked in each manufacturing procedure, and put into the assembly line conforming to all the procedures. Ever finished valve shall be taken blowing test.
Diaphragm repair kits suit for DMF series dust collector diaphragm valve
Temperature Range: -40 – 120C ( Nitrile material diaphragm and seal), -29 – 232C (Viton material diaphragm and seal)

CA-25T  diaphragm valve pilot

Diaphragm valve pilot inspection should be conducted annually.

DMF-Z-25, CA-25T, SCG353A044J 3 different series 1" port size pulse jet valve for customers option

Note: Diaphragm valve itself is not a structural component. Do not rely on valve to retain tanks or pipe.

Loading time: 7-10 days after payment received
Warranty: Our pulse valve warranty is 1.5 year, all valves comes with basic 1.5 year sellers warranty, if item defective in 1.5 year, We will offer replacement without extra charger(including shipping fee) after we receive the defective products.

Deliver
1. We will arrange deliver immediately after payment when we have storage.
2. We will prepare the goods after confirmed in the contract on time, and deliver ASAP follow the contract exactly when the goods are customized
3. We have a variety of ways to send goods, such as by sea, by air, express as DHL, Fedex, TNT and so on. We also accept deliver arranged by customers.

We promise and our advantages:
1. We are a factory professional for pulse valve and diaphragm kits manufacturing.
2. Our sale and technical team keep giving professional suggestions in first time when our customers have
any questions about our products and service.
3. We accept customer made pulse valve, diaphragm kits and other valve parts based on our customers' requests.
4. Files for clear will prepare and send to you after goods been delivered, make sure our customers can clear in customs
and working the business smoothly. FORM E, CO supply for you based on your needs.
5. Every pulse valves have been tested before left our factory, make sure each valves come to our customers are good function without problems.
